{tab=Tổng quan}

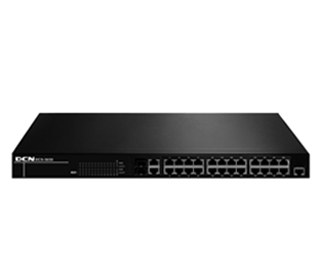

DCS-3650 series là switch Ethernet L2 tốc độ cao với lợi ích chi phí-hiệu quả và cung cấp các tính năng dự phòng để đáp ứng các yêu cầu của từ doanh nghiệp và khách hàng truy cập Man.
• 8,16,24 10/100 ports truy cập
• 1, 2 GB Combo uplink.
• IGMP Snooping và + PPPoE,
• POE cho các giải pháp VOIP và Wireless
{tab=Tham số}
| Item | DCS-3650-8C | DCS-3650-8C-POE | DCS-3650-26C |
| Ports | 8*10/100Base-TX + 1* Gigabits Combo(SFP/GT) | 8*10/100Base-TX POE+ 1* Gigabits Combo(SFP/GT) | 24*10/100Base-TX + 2*Gigabits Combo(SFP/GT) |
| Performance | |||
| Switching Capacity | 3.6Gbps | 3.6Gbps | 8.8Gbps |
| Forwarding Rate | 2.8Mpps | 2.8Mpps | 6.6Mpps |
| MAC ADDRESS | 8K | 8K | 8K |
| ACL TABLE | 512 | 512 | 512 |
| Queues per port | 4 | 4 | 4 |
| VLAN TABLE | 4K | 4K | 4K |
| Physical | |||
| Dimension（W×H×D） | 282mm x 44mm x 178mm | 443mm x 44mm x 230mm | 443mm x 44mm x 230mm |
| Power Supply | AC：100~240 V AC，50/60 Hz (internal AC power supply) | AC：100~240 V AC，50/60 Hz (internal AC power supply) | DC：-48 V DC (internal DC power supply) |
| Power Consumption | ≤15W | ≤160W | ≤20W |
| MTBF | >80000 hours | ||
| Temperature | Working 0°C～50°C, storage -40°C～70°C | ||
| Relative Humidity | 5%～95%，non-condensing | ||
| EMC safety | FCC, CE, RoHS | ||
{tab=Thông tin kỹ thuật }
| Main Features | ||
| Forwarding | Storage and forwarding | |
| L1,L2 Features | VLAN Type | 802.1Q based Vlan and support upto 4K vlan id |
| Port based Vlan | ||
| Support GVRP | ||
| Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP | |
| Support Root guard, BPDU guard, BPDU forwarding | ||
| Link Aggregation | Support LACP 802.3ad, max 14 groups trunk with max 8 ports for each trunk, | |
| Support source / destination MAC/IP based load balance | ||
| MAC Operation | Support MAC binding | |
| Support MAC filter | ||
| Support black hole MAC | ||
| Support MAC limit per port | ||
| Broadcast storm control | Support Broadcast / Multicast / Unicast Storm Control | |
| Supports control and can set rate for broadcast | ||
| Port | Support VCT | |
| GE combo ports could be compatible with FE SFP module | ||
| Support 1:1 and N:1 port mirror | ||
| Jumbo Frame | ||
| Loopback interface | ||
| Port loop detection | ||
| Bandwidth control: At least 64Kbps step | ||
| Support HOL preventing first packet jam, semi-duplex backpressure, duplex IEEE802.3x | ||
| Port Protection | ||
| POE+ | Support IEEE 802.3af POE | |
| (POE switch only) | Support global / port POE function control | |
| QOS Features | 4 hardware queues per FE port and 8 queues per GE port | |
| Traffic classification based on IEEE 802.1p CoS, DSCP, ToS | ||
| Supports SP, WRR, SWRR for scheduling | ||
| Security | IEEE 802.1x | Port, MAC based authentication |
| Support guest vlan and auto vlan | ||
| Work with private client can manage P2P traffic | ||
| AAA | RADIUS for Ipv4 and Ipv6 | |
| ACL | Support Access Control Lists(ACL) based on source/destination IP address, source/destination MAC address, IP type, TCP/UDP port number, IP precedence, time range, ToS. | |
| ACL on VLAN interface | ||
| ARP | Support ARP binding | |
| Support ARP limit | ||
| Support ARP guard | ||
| Support Anti ARP scanning | ||
| Enhanced | Ip source guard support under controlled L3 forwarding block | |
| Support DHCP Snooping | ||
| Multicast | Support IGMP v1/v2/v3 snooping | |
| Fast Leave | ||
| Support multicast policy configuration | ||
| IPv6 | ICMPv6, NDP, SNMP over IPv6, HTTP over Ipv6, Ipv6 Ping/tracer, Ipv6 Telnet, Ipv6 RADIUS+, Ipv6 Syslog, IPv6 SNTP, IPv6 FTP/TFTP | |
| Support DHCPv6 Server, Relay, Snooping | ||
| Support IPv6 MVR | ||
| Management | Switch Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 |
| RMON 1,2,3,9 | ||
| SSHv1,v2 & SSL support | ||
| RJ45 Console | ||
| Support Public & Private MIB interface | ||
| Supports SNTP, Summer Saving Time | ||
| Support Multiple sys-log servers | ||
| Support OAM 802.3ah | ||
| Support NMS software management | ||
| Support MAX 24 unites cluster | ||
| Supports IPv4 and IPv6 Security IP management | ||
| Firmware & Configuration | Multiple firmware images/ configuration files | |
| Firmware upgrade via TFTP/FTP server | ||
| Configuration file upload/download via TFTP/FTP server | ||
| DHCP | Supports BOOTP, DHCP server/client for IP address assignment | |
{tab=Thông tin đặt hàng}
| Model | Description |
| DCS-3650-8C | 8*10/100Base-TX + 1 Combo(SFP/GT) port |
| DCS-3650-8C-POE | 8*10/100Base-TX ports POE + 1 Combo(SFP/GT) port |
| DCS-3650-26C | 24*10/100M ports + 2 Gigabit Combo (SFP/GT) ports. |
| DCS-3650-26C-DC | 24*10/100M ports + 2 Gigabit Combo (SFP/GT) ports. |
| DCS-3650-24T | 24*10/100M ports |
| DCS-3650-16C | 16*10/100M ports + 2 Gigabit Combo (SFP/GT) ports. |
| DCS-3650-16T | 16*10/100M ports |
| DCS-3650-8C-DC | 8*10/100Base-TX + 1 Combo(SFP/GT) port |
| DCS-3650-8T | 8*10/100Base-TX |
| DCS-3650-8C-POE-DC | 8*10/100Base-TX ports POE + 1 Combo(SFP/GT) port |
| DCS-3650-26C-POE | 24*10/100M ports POE + 2 Gigabit Combo (SFP/GT) ports. |
| DCS-3650-26C-POE-DC | 24*10/100M ports POE + 2 Gigabit Combo (SFP/GT) ports. |
