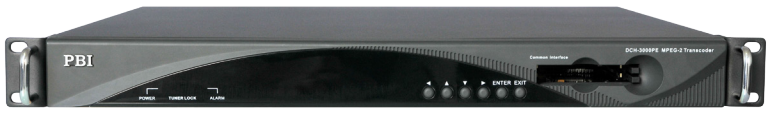

1×F type female 75Ω for Input, 1×F type
female 75 Ω for loop through output

Dãi tần số ngõ vào

950 ~ 2150MHz

Mức ngõ vào

-25 ~ -65dBm

Tốc độ Symbol

5 ~ 45MBaud/s for QPSK

Hệ số Rolling Off

DVB-S QPSK: 0.35
DVB-S2 8PSK: 0.35, 0.25, 0.2

FEC Code Rate

DVB-S QPSK：1/2, 3/5, 2/3, 3/4, 4/5, 5/6,
8/9, 8/10

LNB Polarization

0, 13V, 18V(lựa chọn)

Băng tần chuyển mạch LNB

0/22KHz (lựa chọn)

DiSEqC

DiSEqC 1.0

1×F type female 75Ω for Input, 1×F type
female 75Ω for loop through output

Dãi tần số ngõ vào

48~860MHz

Mức ngõ vào

45 ~ 75dBuV

Tốc độ Symbol

1 ~ 7MS/s (ITU J.83 Annex A)

Constellation

16/32/64/128/256 QAM

Suy hao đầu vào

7dB (typ.)

Băng tần

6MHz/7MHz/8MHz

1×F type female 75Ω for Input, 1×F type
female 75Ω for loop through output

Dãi tần số ngõ vào

VHF: 174 ~ 230MHz; UHF: 470 ~ 862MHz

Mức ngõ vào

-20 ~ -70dBm (Quasi Error Free, QEF)

Constellation

DVB-T: QPSK/16-QAM/64-QAM;
DVB-T2: QPSK, 16QAM, 64QAM,
256QAM

Chế độ FTT

DVB-T: 2K/8K
DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K

Tỉ số mã hóa FEC

DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Băng thông

6MHz/7MHz/8MHz

Input Return Loss

7dB (typ.)

1×BNC, 75Ω

Chuẩn

DVB-ASI, EN50083-9

TS Processing

Tái ghép các đầu vào ASI, Tuner, and TS/IP

2×BNC Female, 75 Ω, including loop
through

Chuẩn

Compliant with ITU-T G.703

Frame Structure

Compliant with ITU-T G.752 and ITU-T G.804

Bit Rate

44.736Mb/s

2×RJ-45, 10/100 Base-T for TS/IP

TS/IP1

TS/IP output for demodulated signal
source

TS/IP2

TS/IP output for transcoded service

Useful Bit Rate

70Mb/s for 10/100 Base-T

Protocol

UDP / RTP, Multicast / Unicast, IGMPv2,ARP

Remux and demux between Tuner / DS3
(optional) / E3 (optional), ASI and TS/IP
Inputs

Quản lý ngõ ra TS

Remux and demux for mirrored ASI outputs

Service and PID management

Remux, filtering and remapping

PSI/SI

PSI/SI table regeneration, NIT and SDT
edition, LCN Edition and Re-generation

DVB/EBU

VBI

Teletext, WSS, VFD, VPS

Chú thích

EIA 608, EIA 708, EIA 608-to-708

2×BNC Female, 75 Ω

ASI OUT1

output for demodulated signal source

ASI OUT1

output for transcoded service

Chuẩn

DVB-ASI, EN50083-9

TS Processing

Tái ghép các đầu vào ASI, Tuner, and TS/IP

MPEG-2(MP@ ML for SD, MP@HL for HD)
MPEG 4/H.264 AVC Part 10 (MP@L3 for
SD, HP@L4.1 for HD)

Video PID Bit Rate

< 80Mb/s

Độ phân giải SDI

1080i ×30, 1080i ×29.97,1080i ×25,
720p ×60, 720p ×59.94, 720p ×50,
576i ×25, 480i ×29.97
(only 576i×25 or 480i×29.97 is selectable
when transcoding mode is selected)

BNC Female, 75 Ω

Serial Interface

SMPTE 259M, 270 Mb/s (10bit)

Level

800mV p-p

SDI BNC Female, 75Ω

Số ngõ ra

1×digital audio* is decoded, 1 ×digital
audio loop through

Sampling Rate

32, 44.1 and 48KHz

Audio Bit Rate

32, 64, 96, 128, 160, 192, 224, 256, 288,
320, 352, 384, 416 and 448 kb/s for
MPEG-1 Layer I

Output Level

1Vpp

Output Format

XLR Balanced Audio

Load Impedance

110Ω (with cable adaptors)

NTSC, PAL and SECAM

Tiêu chuẩn nén

MPEG-2 MP@ML (ISO/IEC13818-2)

Độ phân giải video

480i (720×480) @29.97Hz: SMPTE125M
576i (720×576) @25Hz: ITU-R BT.656-4

Aspect Ratio

4:3/16:9 selectable

Video Encoding Bit rate

1.5 ~ 20Mb/s

1×BNC 75Ω

Video Standard

NTSC, PAL, and SECAM

Signal Level

1000mVp-p ±30mV

Frequency Response

<0.5dB,≥-4dB at 5.5MHz

Chroma-Luma Delay

<±30 ns

Field Time Distortion

<2%

Line Time Distortion

<1%

Short Time distortion

<2%

Differential Gain

<4%

Differential Phase

<5

Signal to Noise Ratio

>55 dB (luminance weighted)

MPEG-1 Layer I, II

Audio Sampling Rate

32K, 44.1K, 48K

Audio Encoding Bit rate

32, 64,128, 192, 256, 384Kbps

DB-9 Connector

Output Impedance

600Ω (balanced)

Output Mode

Left, Right, Dual Mono, Stereo

Number of Outputs

1 pairs of stereo audio outputs

1×RJ-45, 10/100 Base-T, for equipment
IP Control

Quản lý từ xa

SNMP, HTTP Web, Proprietary HDMS
Network System Management Software

Serial Port

1×RS-232 9-pin D-sub, for debug use only

Quản lý nội bộ

LCD display and 6-key keypad

Equipment Upgrade

FTP loader

AC 90V ~ 250V, 50/60Hz

Công suất tiêu thụ

24W (exclusive of LNB power)

44mm×420mm×430mm

Trọng lượng

4.5Kg Net, 6.2Kg Gross

Nhiệt độ vận hành

0 ~ 45℃

Nhiệt độ bảo quản

-10 ~ 60℃

Độ ẩm hoạt động

10 ~ 90%, non-condensing
