ExtremeWireless AP360i/e :Wi-Fi 6 (802.11ax) Outdoor Access Point
-
Wi-Fi 6 (802.11ax) Outdoor Access Point With Integrated Or External Antenna Options The AP360 is designed for harsh environments; from hurricane force winds tosubzero temperature, IP67 rated and designed to extend Extreme’s Wi-Fi6 outdoors. Integrated GPS and BLE allows for state of the art location applications for asset tracking.
Wi-Fi 6 (802.11ax) Outdoor Access Point With Integrated Or External Antenna Options
The AP360 is designed for harsh environments; from hurricane force winds tosubzero temperature, IP67 rated and designed to extend Extreme’s Wi-Fi6 outdoors. Integrated GPS and BLE allows for state of the art location applications for asset tracking.
The AP360 is based on new system-on-a-chip (SoC) with two built in dual band 2x2 radios providing the best value with Wi-Fi 6 high-efficiency. Priced for the mass market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance. While other vendors may reduce features and functionality, the AP360 retains all the capabilities of higher-end APs, including software-selectable- radios (SSR). 802.11ax data rates are available concurrently in both the 2.4 GHz and 5 GHz band. The AP360 also provides the flexibility to provide the same data rates simultaneously on two 5 GHz channels using dual-5 GHz SSR technology.
Despite the exponential growth of users, BYOD devices, IoT, high- Bandwidth applications and security threats straining the infrastructure, the AP360 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.
The AP360 is designed for harsh environments; from hurricane force winds tosubzero temperature, IP67 rated and designed to extend Extreme’s Wi-Fi6 outdoors. Integrated GPS and BLE allows for state of the art location applications for asset tracking.
The AP360 is based on new system-on-a-chip (SoC) with two built in dual band 2x2 radios providing the best value with Wi-Fi 6 high-efficiency. Priced for the mass market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance. While other vendors may reduce features and functionality, the AP360 retains all the capabilities of higher-end APs, including software-selectable- radios (SSR). 802.11ax data rates are available concurrently in both the 2.4 GHz and 5 GHz band. The AP360 also provides the flexibility to provide the same data rates simultaneously on two 5 GHz channels using dual-5 GHz SSR technology.
Despite the exponential growth of users, BYOD devices, IoT, high- Bandwidth applications and security threats straining the infrastructure, the AP360 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.
Security
The AP360i/e delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for context- based access security
Wi-Fi 6 (802.11ax)Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking WiFi networks to an entirely new level. To learn more about 802.11ax, go to https://www.extremenetworks.com/are-you-ready-for-802-11ax.
Programmable Radios
Extreme launched the Industry's first software defined 802.11ax access point supporting not only a dual 5GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP360i/e intelligent monitoring of the software configurable radios enables network managers to configure network RF topology based on user environment and configure the access points in different modes as required.
Management Analytics
In conjunction with management system, cloud or on-premises, the AP360i/e provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices, and policy roles. In each context, administrators can adjust dashboards from widget library.
RF Monitoring
Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with SmartRF, a robust RF management system with AI/ML like functionality. Built on 10 years of experience across thousands of large scale networks and millions of access points, SmartRF algorithms manage channels, radios, load balancing, band steering, and many other attributes of the RF.
Integrated BLE
To support both IoT and Guest Engagement services, the AP360i/e integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site- specific information.
The AP360i/e delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for context- based access security
Wi-Fi 6 (802.11ax)Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking WiFi networks to an entirely new level. To learn more about 802.11ax, go to https://www.extremenetworks.com/are-you-ready-for-802-11ax.
Programmable Radios
Extreme launched the Industry's first software defined 802.11ax access point supporting not only a dual 5GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP360i/e intelligent monitoring of the software configurable radios enables network managers to configure network RF topology based on user environment and configure the access points in different modes as required.
Management Analytics
In conjunction with management system, cloud or on-premises, the AP360i/e provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices, and policy roles. In each context, administrators can adjust dashboards from widget library.
RF Monitoring
Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with SmartRF, a robust RF management system with AI/ML like functionality. Built on 10 years of experience across thousands of large scale networks and millions of access points, SmartRF algorithms manage channels, radios, load balancing, band steering, and many other attributes of the RF.
Integrated BLE
To support both IoT and Guest Engagement services, the AP360i/e integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site- specific information.
Product Specifications
Radio Specifications
Max Users
SSID per Radio/Total: 8/16
Users per Radio/total: 512/1024
802.11a
5.150–5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
2.4–2.5 GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation
Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
2.4–2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
802.11n Modulation
Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
2x2 Multiple-In, Multiple-Out (MIMO) Radio
HT 20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
HT 40 High-Throughput (HT) Support for 5 GHz
A-MPDU and A-MSDU Frame Aggregation
802.11ac
5.150–5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0 – MCS9(6.5Mbps – 867Mbps), NSS = 1-2
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support
TxBF (Transmit Beamforming)
802.11ax
2.4-2.5 GHz and 5.150-5.850 GHz Operating Frequencies
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
5G Rate : HE0-HE11 (8 Mbps – 1200 Mbps)
2.4G Rate: HE0-HE11 (8Mbps – 574 Mbps)
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
HE20/HE40/HE80 support for 5 GHz
HE20/HE40 support for 2.4 GHz
DL SU-MIMO and MU-MIMO
TxBF (Transmit Beamforming)
Interfaces
(2) Autosensing 10/100/1000 Ethernet
Power Specifications
IEEE 802.3af PoE power
Power Options
Power Draw: Typical: 9.5W, Max: 12.1W
802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45
power input pins: Wires 4,5,7,8 or 1,2,3,6)
802.3af Power over Ethernet injector
Radios
BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
Internal GPS - accuracy is 2.5m- 3m in open sky
Physical
7.4" x 5.7" x 1.9" (190mm x 145mm x 50mm)
AP360i/e: estimate 2.2 lbs (1.0 kg)

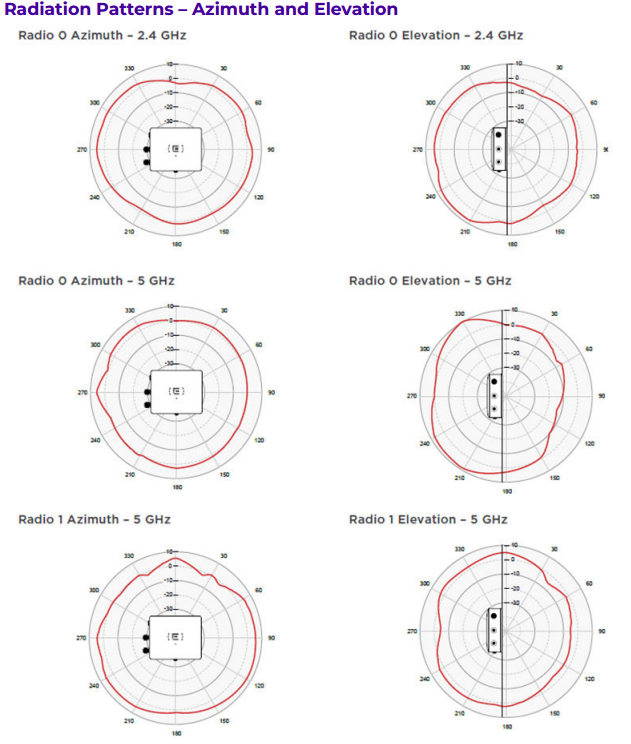

Internal Antennas
(2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional
(2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
(1) Integrated single band, 2.4-2.5 GHz omnidirectional for BLE
External Antennas
(5) Ntype connectors
Mounting
Pole Mount with 15 degree tilt (sold as an accessory)
12" Extension arm (sold as an accessory)
10" Extension w/2-axis 80 degree tilt (sold as an accessory)
Environmental Specifications
Operating: -40°C to 60°C (-40°F to 140°F)
Storage: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% (non-condensing)
Wind Rating: 165 Mph sustained winds
Operational Shock: IEC60721-3-4, Class 4M3; ASTM D3332-99; MIL STD 810H
Method 516; IEC6137 Ed 2, Chapter 10, Category 1, Class B (Body Mounted)
Operation Vibration: ASTM D3580-95, IEC60721-3-4, Class 4M3 (IEC
60068-2-64); IEC61373 Ed. 2, Chapters 8&9, Category 1, Class B (Body
Mounted)
Environmental Discharge
+/-4 kV contact and +/-8 kV air
Regulatory Compliance
Product Safety Certifications
