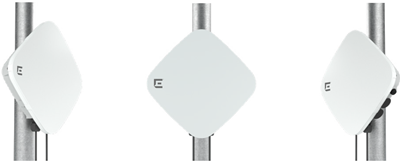

Universal Wireless AP460C Wi-Fi 6 (802.11ax) Tri-Radio Outdoor Access
-
ExtremeCloud IQ: Outdoor Tri Radio WiFi 6 AP, 2.4 GHz, 5GHz, and Sensor w/Dual 5GHz and Mulitrate Port. Environmentally friendly, Light, power sensors, BLE. AI/ML green mode. ONMI antennas.
Wi-Fi 6 (802.11ax) Tri-Radio Outdoor Access
In today’s world, as businesses make capital investments in their technology infrastructure, they must have a keen eye on how those investments can improve operational efficiency and reduce cost. With Extreme’s Universal infrastructure, customers can take advantage of hardware agility and reduce the total cost of their network by adopting platforms that allow them to run multiple Extreme operating systems. This multi-persona capability provides increased product flexibility and reduced hardware obsolescence.
The AP460C is part of Extreme’s Universal Wi-Fi platforms and provides users the choice of Wi-Fi operating system (ExtremeCloud IQ or WiNG Operating System). Customers have the flexibility to select the OS at start-up or at a later stage and the AP will assume the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The preprovisioned OS persona is then remotely enabled on the AP460C AP and the user can stay in the cloud or select manage the device locally.
The AP460C is a Tri-Radio based on advanced radio technology delivers 802.11ax and is designed for harsh environments; from hurricane force winds to sub-zero temperature. The AP460C is IP67 outdoor rated and extends Extreme’s Wi-Fi 6 coverage outdoors in a sleek form factor with three different antenna models: AP460C is based on internal Omni antenna, AP460S6C is a internal 60° Sector, and the AP460S12C is based on a 120° Sector for the most challenging outdoor deployments.
The AP460C is based on Wi-Fi 6 Tri-Radios design delivers 802.11ax 2x2:2 data rates on 2.4 GHz and 4x4:4 data rates on 5 GHz concurrently on both the 2.4 GHz and 5 GHz radios and a 3rd radio for a dedicated full time dual banded sensor. The Tri-Radio APs continue the Extreme tradition of software-selectable- radios (SSRs) capable of dual 5 GHz connectivity for outdoor harsh environments. The AP460C combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest environments.
In today’s world, as businesses make capital investments in their technology infrastructure, they must have a keen eye on how those investments can improve operational efficiency and reduce cost. With Extreme’s Universal infrastructure, customers can take advantage of hardware agility and reduce the total cost of their network by adopting platforms that allow them to run multiple Extreme operating systems. This multi-persona capability provides increased product flexibility and reduced hardware obsolescence.
The AP460C is part of Extreme’s Universal Wi-Fi platforms and provides users the choice of Wi-Fi operating system (ExtremeCloud IQ or WiNG Operating System). Customers have the flexibility to select the OS at start-up or at a later stage and the AP will assume the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The preprovisioned OS persona is then remotely enabled on the AP460C AP and the user can stay in the cloud or select manage the device locally.
The AP460C is a Tri-Radio based on advanced radio technology delivers 802.11ax and is designed for harsh environments; from hurricane force winds to sub-zero temperature. The AP460C is IP67 outdoor rated and extends Extreme’s Wi-Fi 6 coverage outdoors in a sleek form factor with three different antenna models: AP460C is based on internal Omni antenna, AP460S6C is a internal 60° Sector, and the AP460S12C is based on a 120° Sector for the most challenging outdoor deployments.
The AP460C is based on Wi-Fi 6 Tri-Radios design delivers 802.11ax 2x2:2 data rates on 2.4 GHz and 4x4:4 data rates on 5 GHz concurrently on both the 2.4 GHz and 5 GHz radios and a 3rd radio for a dedicated full time dual banded sensor. The Tri-Radio APs continue the Extreme tradition of software-selectable- radios (SSRs) capable of dual 5 GHz connectivity for outdoor harsh environments. The AP460C combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest environments.
Security
The AP460C delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2- L7 DPI firewall for context-based access security.
Management Analytics
In conjunction with management system, cloud or On-premises the AP460C provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles. In each context, administrators can adjust dashboards from widget library.
Wi-Fi 6 Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking WiFi networks to an entirely new level. To learn more about 802.11ax, go to: https://www.extremenetworks.com/are-you-ready-for-802-11ax/
Programmable Radios
Industry's first tri-radio 802.11ax access point with two software selectable radios to optimally manage radios to provide the highest level of client performance while simultaneously providing continuous RF monitoring for security threats. The AP460C intelligent monitoring of the software selectable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required.
Universal Hardware
The AP460C as a universal hardware platform comes with adual-persona capability allowing user choice of the Wi-Fi operating system (OS). Either the ExtremeCloud IQ operating system or the WiNG operating system persona can be enabled as required. The desired persona can be selected at start-up or changed at a later stage. Once selected, the AP460C assumes the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The preprovisioned OS persona is then remotely enabled on the AP460C system, eliminating the need for manual selection.
Integrated BLE
To support both IoT and Guest Engagement services the AP460C integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use API driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site-specific information.
The AP460C delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2- L7 DPI firewall for context-based access security.
Management Analytics
In conjunction with management system, cloud or On-premises the AP460C provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles. In each context, administrators can adjust dashboards from widget library.
Wi-Fi 6 Technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking WiFi networks to an entirely new level. To learn more about 802.11ax, go to: https://www.extremenetworks.com/are-you-ready-for-802-11ax/
Programmable Radios
Industry's first tri-radio 802.11ax access point with two software selectable radios to optimally manage radios to provide the highest level of client performance while simultaneously providing continuous RF monitoring for security threats. The AP460C intelligent monitoring of the software selectable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required.
Universal Hardware
The AP460C as a universal hardware platform comes with adual-persona capability allowing user choice of the Wi-Fi operating system (OS). Either the ExtremeCloud IQ operating system or the WiNG operating system persona can be enabled as required. The desired persona can be selected at start-up or changed at a later stage. Once selected, the AP460C assumes the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The preprovisioned OS persona is then remotely enabled on the AP460C system, eliminating the need for manual selection.
Integrated BLE
To support both IoT and Guest Engagement services the AP460C integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use API driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site-specific information.
Highlights
Advanced Radio Technology
Tri-Radio Design
• 5GHz 4x4:4
• 2.4GHz 2x2:2
• 2.4GHz/5 GHz/Sensor
Multiple Radio Modes - SSR
• 2.4 GHz/5 GHz/Sensor (2.4GHz/5GHz)
• 5GHz/5 GHz - Dual 5 GHz
Universal Hardware Platform
• On-Premises: WiNG OS (Distributed),
ExtremeCloud™ IQ Controller
(Centralized)
• Cloud: ExtremeCloud IQ
High Density Environments
• Delivers exceptional end-user
experience even in the densest user
environments
WPA3 Support
• Includes the latest WPA3 Wi-Fi security
standard delivering robust protections
for users and IoT devices
Fully Functional over 802.3at
Designed for Harsh Environments
• IP67 Outdoor Rated
• Extended temp range -40°C to +60°C
Smart Management Choices
• ExtremeCloud IQ for powerful, simple,
and secure public or private cloud
management
• ExtremeCloud IQ Controller or VX/NX
controllers ideal for for on-premises
requirements
• Optional ExtremeCloud IQ visibility
supported via on-premises controller
Advanced Radio Technology
Tri-Radio Design
• 5GHz 4x4:4
• 2.4GHz 2x2:2
• 2.4GHz/5 GHz/Sensor
Multiple Radio Modes - SSR
• 2.4 GHz/5 GHz/Sensor (2.4GHz/5GHz)
• 5GHz/5 GHz - Dual 5 GHz
Universal Hardware Platform
• On-Premises: WiNG OS (Distributed),
ExtremeCloud™ IQ Controller
(Centralized)
• Cloud: ExtremeCloud IQ
High Density Environments
• Delivers exceptional end-user
experience even in the densest user
environments
WPA3 Support
• Includes the latest WPA3 Wi-Fi security
standard delivering robust protections
for users and IoT devices
Fully Functional over 802.3at
Designed for Harsh Environments
• IP67 Outdoor Rated
• Extended temp range -40°C to +60°C
Smart Management Choices
• ExtremeCloud IQ for powerful, simple,
and secure public or private cloud
management
• ExtremeCloud IQ Controller or VX/NX
controllers ideal for for on-premises
requirements
• Optional ExtremeCloud IQ visibility
supported via on-premises controller
Product Specifications
Radio Specifications
Max Users
SSID per Radio/Total: 8/16
Users per Radio/total: 512/1024
802.11a
5.150–5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
2.4–2.5GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation
Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
2.4–2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
802.11n Modulation
Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz
HT40 High-Throughput (HT) Support for 5 GHz
A-MPDU and A-MSDU Frame Aggregation
802.11ac
5.150–5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support
TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Sensor)
5.150–5.850 GHz Operating Frequency
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps), NSS = 1-2
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80/VHT160 support
TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Radio)
2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
Rate (Mbps) - 5G: HE0-HE11 (8 Mbps – 4800 Mbps)
Rate (Mbps) - 2.4G: HE0-HE11 (8 Mbps – 574 Mbps)
4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
HE20/HE40/HE80/HE160 support for 5 GHz
HE20/HE40 support for 2.4 GHz
DL SU-MIMO and MU-MIMO
TxBF (Transmit Beamforming)
Radios
BLE 5 Radio Bluetooth® Low Energy
USB 2.0, Type A , 5V, .5A
Interfaces
100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over
Ethernet 802.3at) Port
10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
Power Specifications
IEEE 802.3af PoE Power
Power Options
Power Draw (w/ USB): Typical 21.7 W, Max 25.3 W
Power Draw (w/o USB): Typical 18.2 W, Max 20.8 W
802.3at Power over Ethernet (PoE) capable
Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
802.3af Power over Ethernet injector
Physical
AP460C: 9.4" x 9.4" x 2.9" (237.6 mm x 237.6 mm x 72.5 mm) Weight: 3.9 lbs
(1.8 kg)
AP460S6C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90 mm) Weight: 4 lbs
(1.8 kg)
AP460S12C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90 mm) Weight: 4 lbs
(1.8 kg)
Antennas

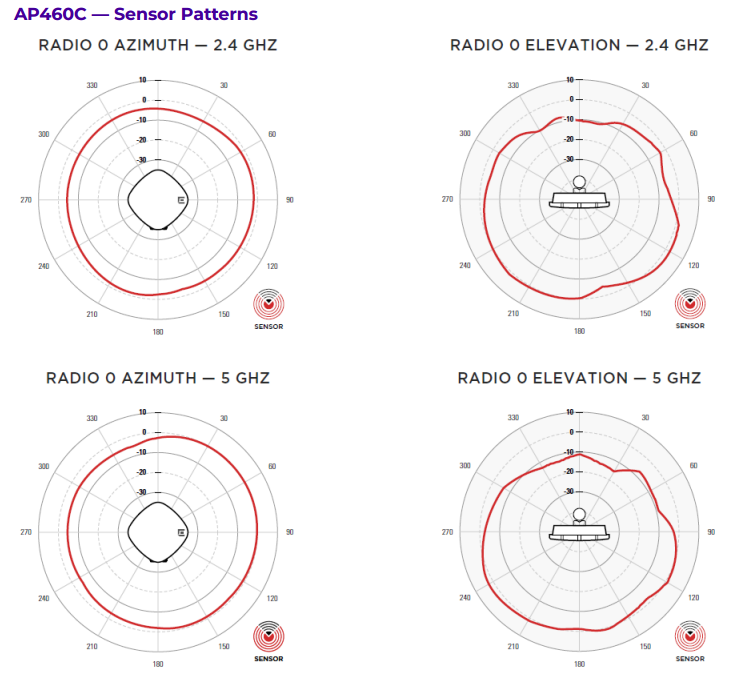

AP460C - Internal OMNI Antennas
(2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE

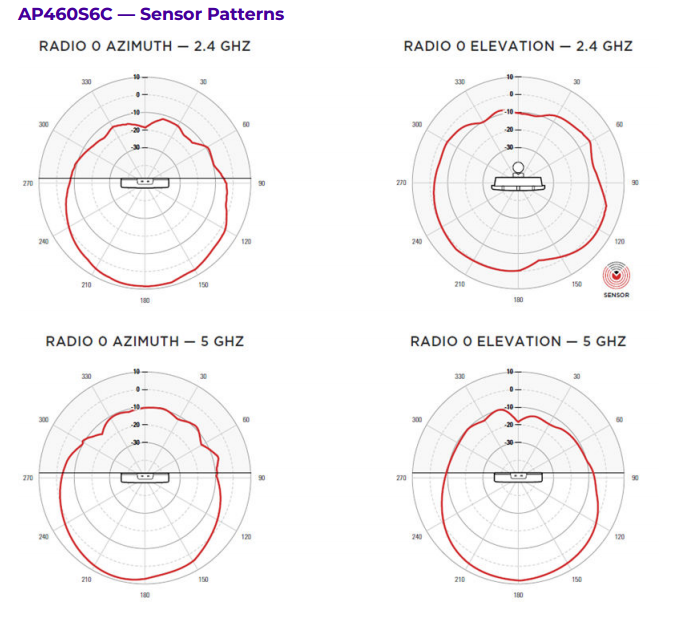

AP460S6C - Internal 60° Sector. Antennas
(2) Integrated single band, 5.1-5.8 GHz sector antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
AP460S12C - Internal 120° Sector. Antennas
(2) Integrated single band, 5.1-5.8 GHz sector antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Environmental
Operating: -40°C to 60°C
Storage: -40°C to 70°C
Humidity: 0% to 95% (non-condensing)
Environmental Discharge
+/-8 kV contact and +/-15 kV air
Environmental Compliance
Housing: IP67 rated outdoor use
Regulatory Compliance
Product Safety Certifications
IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03, AS/NZS
60950.1
RoHS Directive 2011/65/EU
Radio Approvals
FCC CFR 47 Part 15, Class B
ICES-003, Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
RSS247
EN 301 893
EN 300 328
EN 301 489 1 and 17
EN 50385
EN 55032 (CISPR 32)
EN 60601-1-2
AS/NZS4268 + CISPR32
Radio Specifications
Max Users
SSID per Radio/Total: 8/16
Users per Radio/total: 512/1024
802.11a
5.150–5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
2.4–2.5GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation
Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
2.4–2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
802.11n Modulation
Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz
HT40 High-Throughput (HT) Support for 5 GHz
A-MPDU and A-MSDU Frame Aggregation
802.11ac
5.150–5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support
TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Sensor)
5.150–5.850 GHz Operating Frequency
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps), NSS = 1-2
2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80/VHT160 support
TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Radio)
2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
802.11ax Modulation (1024-QAM)
Dual-band OFDMA
Rate (Mbps) - 5G: HE0-HE11 (8 Mbps – 4800 Mbps)
Rate (Mbps) - 2.4G: HE0-HE11 (8 Mbps – 574 Mbps)
4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
HE20/HE40/HE80/HE160 support for 5 GHz
HE20/HE40 support for 2.4 GHz
DL SU-MIMO and MU-MIMO
TxBF (Transmit Beamforming)
Radios
BLE 5 Radio Bluetooth® Low Energy
USB 2.0, Type A , 5V, .5A
Interfaces
100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over
Ethernet 802.3at) Port
10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
Power Specifications
IEEE 802.3af PoE Power
Power Options
Power Draw (w/ USB): Typical 21.7 W, Max 25.3 W
Power Draw (w/o USB): Typical 18.2 W, Max 20.8 W
802.3at Power over Ethernet (PoE) capable
Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
802.3af Power over Ethernet injector
Physical
AP460C: 9.4" x 9.4" x 2.9" (237.6 mm x 237.6 mm x 72.5 mm) Weight: 3.9 lbs
(1.8 kg)
AP460S6C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90 mm) Weight: 4 lbs
(1.8 kg)
AP460S12C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90 mm) Weight: 4 lbs
(1.8 kg)
Antennas
AP460C - Internal OMNI Antennas
(2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
AP460S6C - Internal 60° Sector. Antennas
(2) Integrated single band, 5.1-5.8 GHz sector antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
AP460S12C - Internal 120° Sector. Antennas
(2) Integrated single band, 5.1-5.8 GHz sector antennas
(4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
(1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Environmental
Operating: -40°C to 60°C
Storage: -40°C to 70°C
Humidity: 0% to 95% (non-condensing)
Environmental Discharge
+/-8 kV contact and +/-15 kV air
Environmental Compliance
Housing: IP67 rated outdoor use
Regulatory Compliance
Product Safety Certifications
IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03, AS/NZS
60950.1
RoHS Directive 2011/65/EU
Radio Approvals
FCC CFR 47 Part 15, Class B
ICES-003, Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
RSS247
EN 301 893
EN 300 328
EN 301 489 1 and 17
EN 50385
EN 55032 (CISPR 32)
EN 60601-1-2
AS/NZS4268 + CISPR32
Sản phẩm SNT
